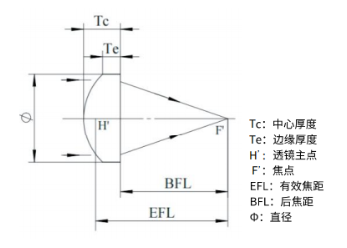

A plano convex lens has a plane and a convex surface. Due to the asymmetry of the front and rear surfaces, it can effectively reduce the spherical aberration. The plano convex lenses are typically used to focus parallel light, with the convex surface in front and the plane surface behind. It can also be used for various applications involving scattering, detection, laser, and fiber optics.

Material: CaF2, MgF2, quartz, K9, etc.

Design wavelength：587.6nm

Central Thickness Tolerance: ± 0.1mm

Dimensional Tolerance: ± 0.1mm

Focal Length Tolerance: ± 1%

Surface Quality: 60/40

Surface Accuracy: λ/10~2λ
